Alianza Minerals Hits Big at Haldane with 1.78m at 818 g/t Silver Intercept
Contributed Opinion

Share on Stocktwits

Source:

The Critical Investor takes a look at Alianza Mineral's latest drill results at its Haldane Silver Project in the Keno Hill District and explains why it may be just scratching the surface.

All pictures are company material, unless stated otherwise.

All currencies are in US Dollars, unless stated otherwise.

After drilling its flagship Haldane project in the Yukon 1.5 years ago, and coming up with decent but not spectacular results (October 2019: 2.35m @ 125 g/t Ag, 4.4% Pb from 154m depth; November 2019: 10.7m @ 125.6 g/t Ag including 1m @ 455 g/t Ag, and 1m @ 180 g/t Ag), Alianza Minerals Ltd. (ANZ:TSX.V; TARSF.US) management was still eager to keep looking for the kind of silver mineralization that was responsible for over 214Moz Ag of historic production at the Keno Hill mining camp up to 1990, which was nothing short of spectacular at grades up to 89.2 oz (not grams!)/t for the larger mines:

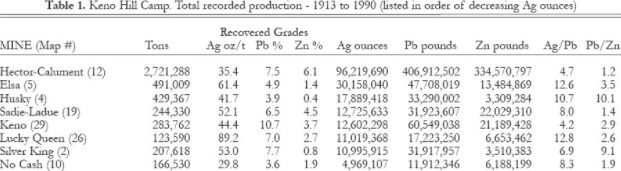

Afbeelding met tafel

Automatisch gegenereerde beschrijving

Some smaller mines even had grades as high as 744.3 oz/t Ag (just one vein producing 15 tons of ore in this case), which translates into an unbelievable 23,138 g/t Ag. Such average grades should be regarded unrealistic for the Haldane Silver project, but keep in mind the project is located in exactly the same stratigraphy as these historical mines, as can be seen in the map below.

Afbeelding met kaart

Automatisch gegenereerde beschrijving

The company wasn't just looking at the analogy for a useful geological concept, as the current phase I drill program was a follow up program around a historical 2011 intercept of 2.2m @ 320 g/t Ag, 1.12 g/t Au, 0.86% Zn and 0.86%. Management also had the UM-02 hole in mind, which is an underground hole drilled in the 60s at Middlecoff, which is the southernmost intersection on the project, generating 1.2m @ 2,791 g/t Ag and 18.7% Pb.

The Haldane property remained very underexplored throughout the years, and has seen very little drilling. When asked about the possible reasons for this, Jason Weber, president and CEO, answered:

"I believe it to be a combination of distance from the main Keno Deposits/processing facilities, and plenty of available targets close to the processing facilities and time. Because the distance to haul ore from Haldane to Elsa would have been prohibitive in the 1920s, they would have focused on the area around the Elsa and Keno facilities. There are over 60 deposits in the area so they would have had lots to work on, so why look 20-30km away when you have a highway running through a camp with lots to explore? As time went on the Haldane showings were likely forgotten, hidden on the backside of the mountain, a 10 km drive in. And since the Keno area was largely controlled by United Keno Hill Mines, who struggled to be economic at times, Haldane was off the radar."

So when the recent news came out on January 28, 2021, of Alianza Minerals drilling a significant 1.78m @ 818g/t Ag within a 8.72m intercept containing on average 311 g/t Ag, 0.89% Pb and 1.13% Zn, or 390g/t AuEq from 247m depth at the West Fault target, it was great confirmation of the exploration potential at Haldane, and the first time the company is looking at truly economic intercepts. For reference, 818 g/t Ag translates to 26.3 oz/t Ag.

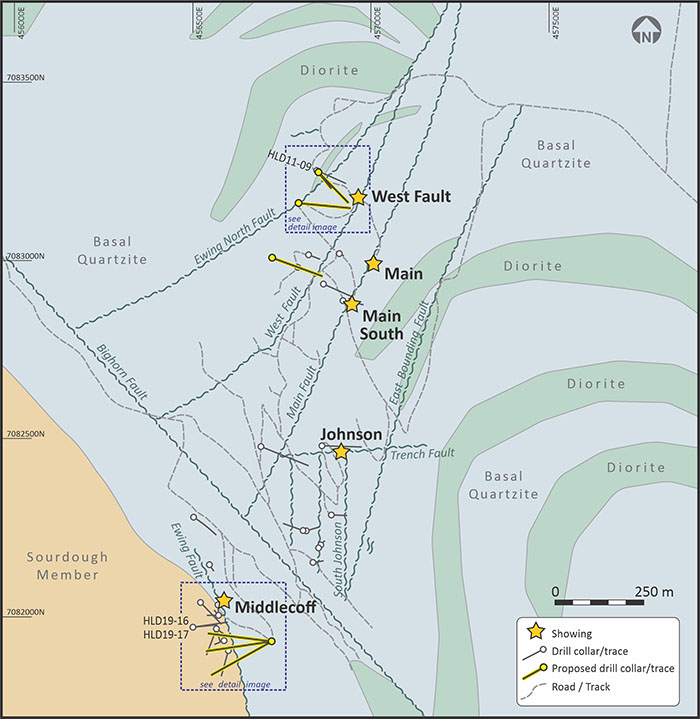

As a reminder, here is the map with the planned Haldane Phase I drill hole trajectories:

Haldane

The small drill program accounted for four drill holes totaling 798.6m, two holes at the West Fault target and two holes at the Middlecoff target, with the last two holes still have assays pending; one of those holes was terminated after 50m due to excessive deviation. As Middlecoff had three holes planned, and the realized location of the holes at the West Fault differed from the map above, Weber explained the first hole at West Fault was supposed to test the Main structure as well, but it steepened up too much making it a very long hole to reach Main, so they terminated it after hitting the West Fault. At Middlecoff the company has only drilled the northern-most of the three proposed, and are looking to complete the other two later this year.

Here is a table of the West Fault results, with HLD20-19 stealing the show obviously:

Hole

From (m)

To (m)

Core Length (m)

Estimated True Width (m)

Silver (g/t)

Gold

(g/t)

Lead (%)

Zinc (%)

Silver-Equivalent (g/t)*

HLD20-18

246.85

248.00

6.80

3.73

96

0.15

0.15

0.73

140

HLD20-19

225.50

226.01

0.51

0.28

226

0.02

4.61

25.90

1347

and

246.85

263.00

16.15

8.72

311

0.11

0.89

1.13

390

including

252.00

260.30

8.30

4.48

444

0.15

1.54

1.34

554

including

257.00

260.30

3.30

1.78

818

0.20

3.47

1.03

980

Analytical values have been rounded. *Silver-equivalent values are calculated assuming 100% recovery using the formula: ((20 * silver (g/t) / 31.104) + (1650 * gold (g/t) / 31.104) + (0.90 * 2204 * lead %/100) + (1.10 * 2204 * zinc %/100)) *(31.1035 / 20). Metal price assumptions are US$20/oz silver, US$1650/oz gold, US$0.90/lb lead and US$1.10/lb zinc.

Please note that the reported intervals are true width as estimated by Alianza Minerals, so it is likely the intervals don't need to be meaningfully adjusted for this, as is often the case when management doesn't have a clear view at geology, or leaves the math simply up to the investor.

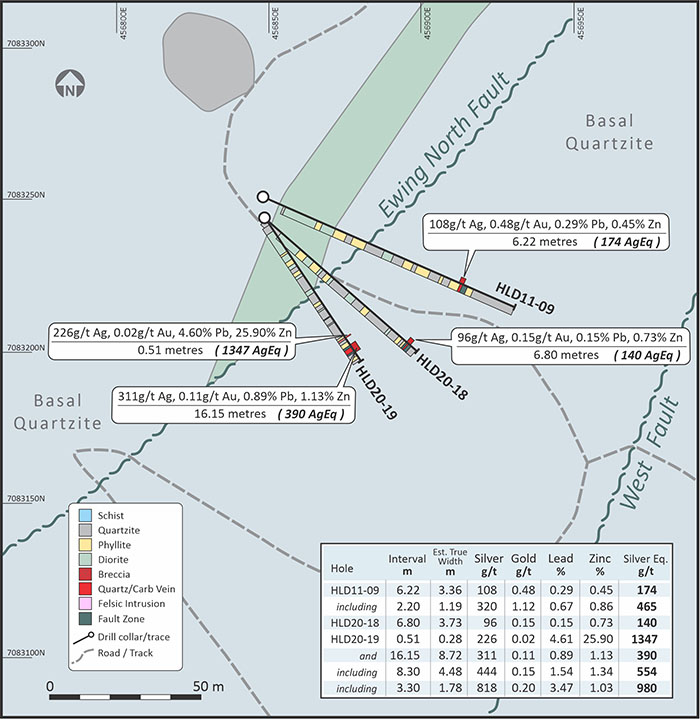

Closing in a bit more on the map for the location of the two recent drill holes HLD20-18 and HLD20-19, following up historical hole HLD11-09:

Alianza West Fault

The three holes shown in the map above are just a very small part of the West Fault Structure, which currently is interpreted by management to be over 1,750m in strike length. The recent results caused the company to elevate the West Fault to highest priority target for their 2021 drill program.

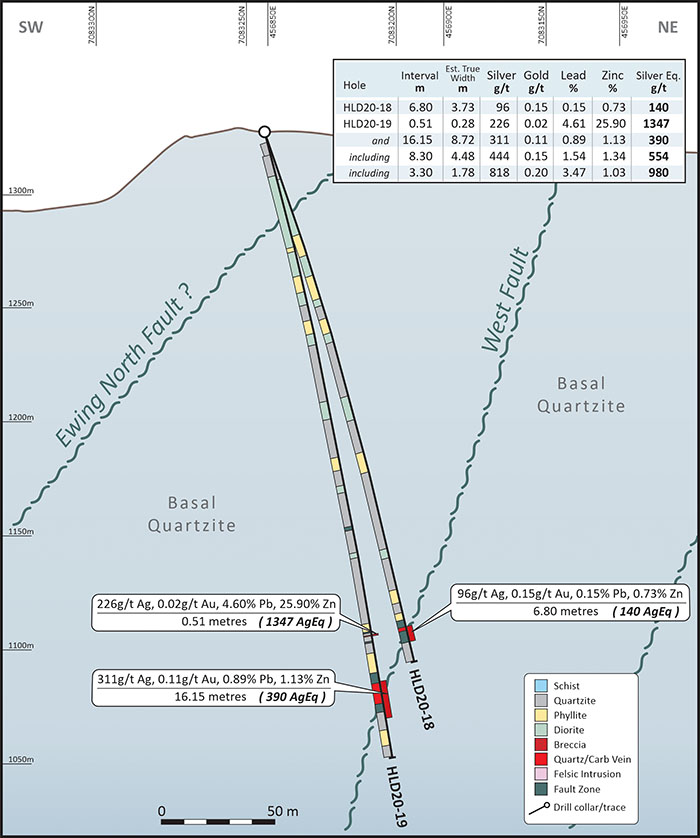

West Fault

CEO Jason Weber was particularly pleased by the width of the intersected vein, as he encountered high grades earlier, but always in a much smaller fashion. As width and grade increased at depth, I wondered if Weber could draw conclusions of this, or that veins by nature could pinch and swell like this, without indicating structural controls.

He answered: "These veins do indeed pinch and swell—you are essentially testing the structure 1) for the right mineralogy, which is of course silver mineralization in this case 2) when you have veins with the right mineralogy you can now step out to test for grade and thickness. The Alexco Resource (AXU.TO) crews who are also drilling at Keno Hill were candid that a narrow intersection of the right type can be meters from a thick, high-grade silver zone."

Obviously as the drilling has just begun in this area, the exploration potential is open in all directions.

Weber's positive attitude is reinforced by the great drill results that Alexco is currently producing at its Bermingham Northeast Deep Zone, which is located in the center of the Keno Hill mining district, in between the old mines. Highlights of their program were 8.76m @ 3,583 g/t Ag, 5.3m @2,070 g.t Ag, 8.15m @ 1,414 g/t, 6.12m @1,560 g/t and 7.46m @1,381 g/t Ag. Alexco is drilling to expand the existing resource of 45 Moz @ 844 g/t Ag at depth, and it owns several other high-grade deposits in Keno Hill, only confirming to Weber that its Haldane location is close to prolific areas.

I also noticed that Metallic Minerals (MMG.V) also has a large land package to the east of the historical mines (Alexco in the center, Alianza to the west), and is soon awaiting drill results from a two phase drill program, starting in August and September, completed on December 10, 2020. I asked Weber about their relatively long timeline, and according to him, the assay labs have unprecedented backups these days, so this might be an explanation for their long turnaround time.

Weber is looking to commence the second phase of drilling in April, when the winter break is over in the Yukon. He is planning to do 1,400m spread out over 4-6 holes, for a budget of C$1.2 million. Other targets he is planning to drill are Middlecoff and Bighorn but they haven't decided what holes to drill exactly at this point.

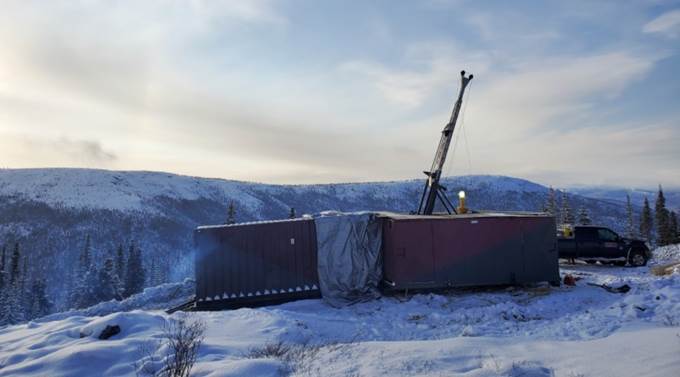

Drill rig at HLD20-21 (Middlecoff Target)

Other active projects of Alianza Minerals are Twin Canyon in Colorado, and Tim Silver in the Yukon. The company expects to get a drill permit for Twin Canyon soon, and is looking to find a JV partner who could assist in exploration. The goal is to start drilling in Q3 of this year. Regarding Tim, the operator of the JV, Coeur Mining, is planning a reconnaissance exploration program starting in Q2, and Alianza is hopeful that the program could lead to drilling at the end of this year.

The current cash position stands at C$2.5 million, and Weber has no immediate plans of raising more capital during 2021.

As Alianza Minerals is focusing on silver at the moment, a precious metal which has recovered nicely from the multi-year long dragging at the bottom, with the absolute bottom reached during the March COVID-19 crash, things are looking fundamentally stronger for the company. Lots of prominent mining investors are focusing on silver and silver equities again, and other, remarkable initiatives are coming into the limelight, as a group of retail speculators is taking on shorting hedge fund managers through coordinated actions on Reddit forums.


Silver price chart; Source BullionVault

Their targets are silver futures and silver equities like First Majestic (FR.TO), one of the most shorted and liquid metal producers around, focusing on silver. As it has nothing to do with fundamentals of silver or related equities, I expect additional volatility. In the meantime, the company is diligently preparing for the upcoming Phase 2 drill program at Haldane first, and all focus should be on this as only the drill bit is able to create real and lasting value.

Conclusion

Alianza Minerals is, in my view at least, definitely fulfilling the potential it always envisioned at its Haldane Silver project at the Keno Hill District with its latest drill results. Keep in mind that 1.78m @ 818g/t Ag sounds great in itself and is already pretty economic as an intercept, but the current ongoing exploration by peers and historical mine production at Keno Hill point toward more impressive average grades that multiply such results on average 2 to even a staggering 28 times, the last one being for very small historical mines but still an indication of what kinds of extreme mineral endowments have been found in the vicinity.

Therefore I do believe that Alianza might just be scratching the surface IF a Keno Hill style deposit is really present. As the highest grade silver project in the world has an average grade of about 1,150g/t Ag, it might be clear that if Alianza could even remotely match the central Keno Hill grades, it is on to something special. It is my suspicion that since January 28, 2021, the company has appeared on a lot more radars in the mining industry, and deservedly so. Let's see where this could go from here.

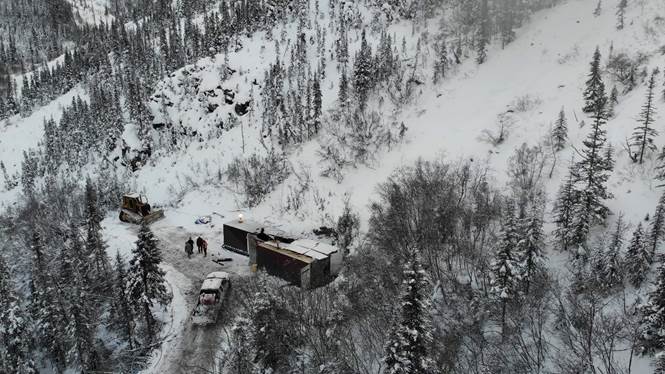

Afbeelding met sneeuw, lucht, buiten, helling

Automatisch gegenereerde beschrijving
Mt Haldane drilling

I hope you will find this article interesting and useful, and will have further interest in my upcoming articles on mining. To never miss a thing, please subscribe to my free newsletter on my website www.criticalinvestor.eu, in order to get an email notice of my new articles soon after they are published.

The Critical Investor is a newsletter and comprehensive junior mining platform, providing analysis, blog and newsfeed and all sorts of information about junior mining. The editor is an avid and critical junior mining stock investor from The Netherlands, with an MSc background in construction/project management. Number cruncher at project economics, looking for high quality companies, mostly growth/turnaround/catalyst-driven to avoid too much dependence/influence of long-term commodity pricing/market sentiments, and often looking for long-term deep value. Getting burned in the past himself at junior mining investments by following overly positive sources that more often than not avoided to mention (hidden) risks or critical flaws, The Critical Investor learned his lesson well, and goes a few steps further ever since, providing a fresh, more in-depth, and critical vision on things, hence the name.
